Name: Constant Temperature and Humidity Test Chamber with 150L Capacity, -40℃ to +150℃ Temperature Range, and 20%R.H to 98%R.H Humidity Control
Brand: Infinity Machine International Inc.
SKU: Серия IE10
Price: 100000 USD
Availability: InStock

Главная страница Продукция Камера для климатических испытаний

Constant Temperature and Humidity Test Chamber with 150L Capacity, -40℃ to +150℃ Temperature Range, and 20%R.H to 98%R.H Humidity Control

Подробная информация о продукте:

Место происхождения:	СДЕЛАНО В КИТАЕ
Фирменное наименование:	Infinity Machine
Сертификация:	CE ISO
Номер модели:	Серия IE10

Оплата и доставка Условия:

Количество мин заказа:	1
Цена:	Negotiate
Упаковывая детали:	Прозрачный лист + губка + деревянный картон
Время доставки:	35-50 дней после подтверждения заказа
Условия оплаты:	Т/Т
Поставка способности:	50 комплектов в месяц

контакт

Подробное описание продукта

Название продукта:	камера температуры постоянного и теста влажности	Модель:	Серия IE10
Стандартный:	GB2423.3-2008 ((IEC68-2-3) Испытание Ca: метод испытания постоянной влажной температуры.	Особенность:	Экономия энергии и снижение потребления;Простая эксплуатация;Высокая надежность
Емкость:	150L, 225L, 408L, 800L, 1000L	Температурный диапазон:	-40°C +150°C
Диапазон контроля влажности:	20% R.H ≈ 98% R.H	Власть:	Электронный
Гарантийный срок:	1 год

Constant Temperature and Humidity Test Chamber Environmental Temperature Chamber

Equipment Overview

Constant temperature and humidity test chambers are designed for environmental simulation reliability testing of industrial products. These chambers feature precise temperature and humidity control with a wide control range, and performance indicators meet the requirements of GB5170.2.3.5.6-95 standards for electrical and electronic products environmental test equipment.

Range of Application

Suitable for electrical, electronic, mechanical products, components, materials, and other products requiring high and low temperature, wet and hot testing. Simulates temperature and humidity change conditions for quality and reliability testing.

Compliance Standards

GB-2423.1-2008 (IEC68-2-1) Test A: Low temperature test method
GB-2423.2-2008 (IEC68-2-2) Test B: High temperature test method
GJB360.8-2009 (MIL-STD.202F) High temperature life test
GJBl50.3-2009 (MIL-STD-810D) High temperature test method
GJBl50.4-2009 (MIL-STD-810D) Low temperature test method
GB2423.3-2008 (IEC68-2-3) Test Ca: Constant wet heat test method
GB2423.4-2008 (IEC68-2-30) Test Db: Alternating wet heat test method
GJBl50.9-2009 (MIL-STD-810D) Wet heat test method

Specification Parameters

Model	IE10150L	IE10225L	IE10408L	IE10800L	IE101000L
Temperature range	-40℃ to +150℃
Temperature fluctuation	±0.5℃
Temperature uniformity	≦2.0℃
Core speed	From -40℃ to +100℃ within 60min (When no load, ambient temperature +25℃)
Cooling rate	From +20℃ to -40℃ within 60min (When no load, ambient temperature +25℃)
Humidity control range	20%R.H to 98%R.H
Humidity deviation	±3.0％RH(＞75％RH) ±5.0％RH(≤75％RH)
Humidity uniformity	±3.0％RH(No load)
Humidity fluctuation	±1.0％RH
Inner box size: WxHxD(mm)	500x600x500	500x750x600	600×850×800	1000×1000×800	1000×1000×1000
Carton size: WxHxD(mm)	720×1500×1270	720×1650×1370	820×1750×1580	1220×1940×1620	1220×1940×1820
Power supply	AC220V;50Hz;4.5KW	AC380V;50Hz;6KW	AC380V;50Hz;7KW	AC380V;50Hz;9KW	AC380V;50Hz;11KW

Construction Features

Insulated box: Outer wall material: high-quality carbon steel plate with electrostatic color spraying. Left side includes φ50mm hole. Inner wall material: SUS304# matte stainless steel plate. Insulation material: rigid polyurethane foam insulation layer + fiberglass.
Box door: Single-door design with door frame heating wire to prevent condensation at low temperatures.
Observation window: W 300×H 400mm multi-layer hollow electrothermal coated glass for effective heat insulation and condensation prevention.
Lighting fixtures: 1 LED lighting device installed on the window.
Sample holder: Stainless steel sample rack with 2 layers, adjustable layer height, load capacity 30kg/layer.
Refrigeration Compressors: French Taikang fully enclosed compressor.
Refrigerant: Non-fluorine environmentally friendly refrigerant R404A, complies with environmental regulations.
Condenser method: Air-cooled.

Safety Protection System

Comprehensive safety protection including: heater air-fire protection; humidifier fire-proof protection; heater over-current protection; humidifier over-current protection; circulation fan over-current and overload protection; compressor high-voltage protection; compressor over-heat protection; compressor over-current protection; over-voltage/under-voltage reverse phase protection; circuit breaker; leakage protection; humidifier low water level protection; water tank low water level warning.

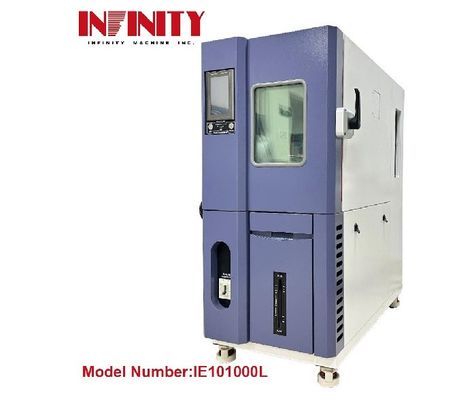

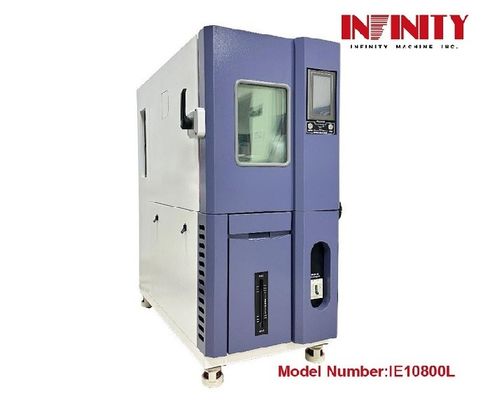

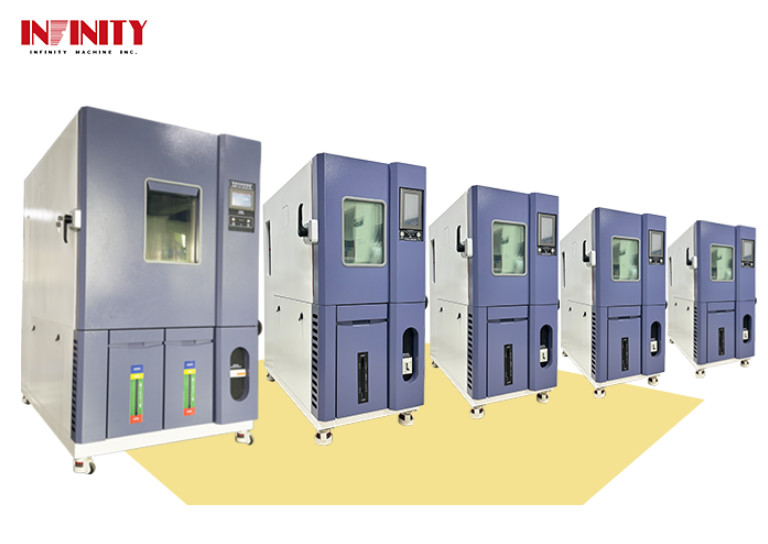

Equipment Image
